TransformerBox T16-PD Performance + Pencil Charger
Charging station for 16 tablets plus 16 Apple Pencils.

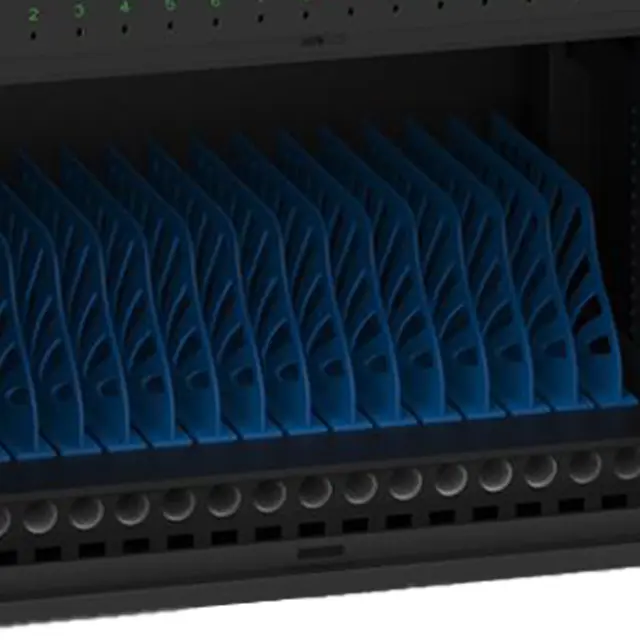

Everything inside the TransformerBox T16-PD Performance + Pencil Charger.
Charging station for 16 tablets plus 16 Apple Pencils.
Up to
tablets at once
Up to
USB-C Power Delivery per port
LED charge status per port
16 extra pencil compartments with USB-A
Integrated ventilation
Every port shows when it’s done.
One LED per port: red while charging, green when full. See at a glance which device is ready – without checking each one.
Cool.
Even at full load.
Active ventilation carries the heat away while up to 16 devices charge at once – for stable charging power and batteries that last.
TransformerBox T16-PD Performance + Pencil Charger
Charging station for 16 tablets plus 16 Apple Pencils.
- 16 tablet bays, 20 W USB-C PD
- 16 extra pencil compartments with USB-A
- LED charge status per port
- Integrated ventilation
No checkout: you get a tailored quote, usually within one working day. Questions? +49 7321 488 781-0 · [email protected]
We will gladly send you the data sheet: Request data sheet ›
Tech specs
General data
| Dimensions (L × W × H) | 560 × 410 × 350 mm |
|---|---|
| Weight | 18 kg |
| Max. compartment size | 310 × 23 × 230 mm |
| Material | Sheet steel + aluminium alloy |
| Country of manufacture | China |
Safety & cooling
| Locking system | Fully lockable with integrated lock (keys included) |
|---|---|
| Cooling | Active ventilation; max. 31 dB(A), airflow 39 m³/h |
Charging functions
| LED charging indicator | Yes – red: charging, green: fully charged |
|---|---|
| Charging power | Intelligent 16-port USB-C 3.0 charging hub with automatic charge cut-off and load balancing + 16 additional ports for charging styluses |
| Electrical output | Up to 20 W per USB port (5 V/4 A, 9 V/2.1 A, 12 V/1.7 A) – total output 320 W – 100–240 V – 50/60 Hz – integrated on/off switch (I/O) |
| Power Delivery (PD) | Yes |
Data & synchronisation
| Synchronisation | No |
|---|
Transport & mounting
| Feet | 4 rubberised feet for placement on sideboards |
|---|---|
| Carrying handles | Recessed carrying handles on both sides |
| Wall mounting | Yes – wall bracket available as an option |
Compatibility & features
| Device compatibility | iOS, Android and Windows devices |
|---|---|
| Protective cases | For up to 16 tablets of max. 11″ incl. thick protective case and any USB-C stylus |
| External connections | IEC power inlet |
| Labelling | Yes |
| Cable management | Easy2connect cable management system |
Scope of delivery & certifications
| Scope of delivery | 1 × power cable 2 m (EU), 1 × user manual, 16 × cable grommets |
|---|---|
| Applied standards | DIN EN 55022 / DIN EN 61140 / DIN EN 55024 / DIN EN 50581 / DIN EN 62368-1 |
| Certificates | CE / RoHS / REACH |
| HS code | 8504409999 |
| Warranty | 1-year manufacturer's warranty (extension optional) |
