Formcase›Charging cases›TransformerCase T16M Pro

Charging cases

TransformerCase T16M Pro

Name: TransformerCase T16M Pro
Brand: Formcase
SKU: 49TC16MCUSBE4-B

Sync and charge case for 16 devices up to 14" with extra storage.

All details

Everything inside the TransformerCase T16M Pro.

Sync and charge case for 16 devices up to 14" with extra storage.

Up to

tablets at once

Up to

12 W

USB-C charging per port

Sync

Charge and sync. Manage iPads with Apple Configurator

Extra space for accessories

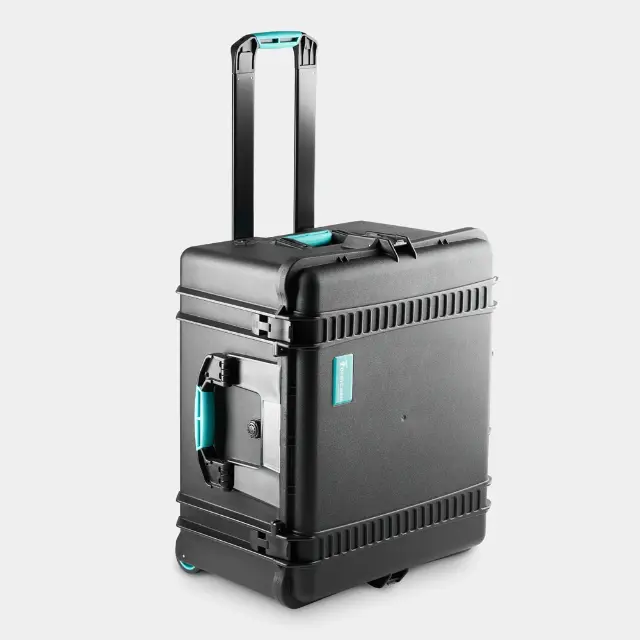

Trolley handle and castors

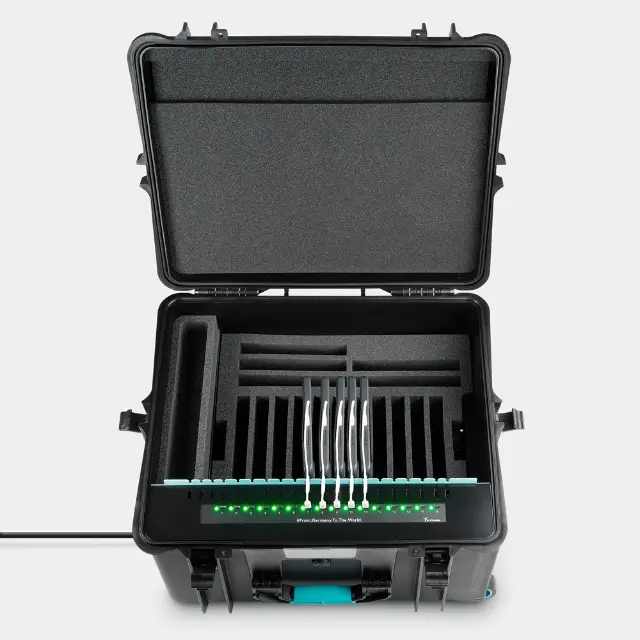

Charge status

Every port shows when it’s done.

One LED per port: red while charging, green when full. See at a glance which device is ready – without checking each one.

Sync

Full? Time to sync.

iPads can be synced with Apple Configurator.

Sync · iPads can be synced with Apple Configurator

0charging

0full

16USB-C

Charge & sync

Every iPad. One Mac.
Apple Configurator.

Connect the TransformerCase T16M Pro to a Mac via its USB sync port. Apple Configurator shows every connected iPad at once – so you can roll out apps, profiles and updates in one go while everything charges.

0 / 16iPads ready

1Connect a Mac via USB
2Open Apple Configurator
3Set up every iPad at once

Apple Configurator is a free app from Apple for the Mac.

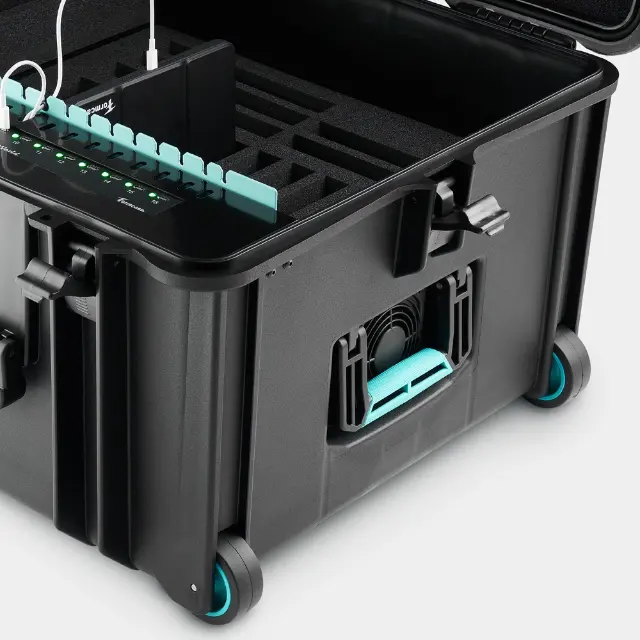

Ventilation

Cool.
Even at full load.

Active ventilation carries the heat away while up to 16 devices charge at once – for stable charging power and batteries that last.

16devices

12W per port

Fanactive

Charging cases

TransformerCase T16M Pro

up to 12 W/Port16 devicesSync

Global SKU TC16MCUSBE4-BSKU CZ 420TC16MCUSBE4-BIn stockDelivery time on request

Sync and charge case for 16 devices up to 14" with extra storage.

Sync and charge via USB-C
Up to 12 W per port
Extra space for accessories
Trolley handle and castors

No checkout: you get a tailored quote, usually within one working day. Questions? +49 7321 488 781-0 · [email protected]

Data sheet

PDFEnglishPDF

Tech specs

All data as a PDF too:

Data sheet

PDFEnglishPDF

General data

Dimensions (L × W × H)	620 × 520 × 350 mm
Weight	14.9 kg
Max. compartment size	Length 220 × Width 25 × Height 270 mm
Material	Polypropylene + glass-fibre composite
Country of manufacture	Germany

Safety & cooling

Latches	4 integrated recessed latches
Padlock hasp	Padlock hasp (ABUS combination padlock available as an option)
Cooling	Active ventilation; max. 31 dB(A), airflow 39 m³/h

Charging functions

LED charging indicator	Yes – red: charging, green: fully charged
Charging power	Intelligent 16-port USB-C charging hub with automatic charge cut-off and load balancing
Charging safety	No timer required – integrated protection against overheating and overcharging
Output per USB port	Up to 5 V/2.4 A (12 W)
Total output	200 W – 100–240 V – 50/60 Hz – integrated on/off switch (I/O)

Data & synchronisation

Synchronisation	Yes, via Apple Configurator
Data transfer	Up to 480 Mbit/s

Transport & mounting

Castors	2 integrated smooth-running castors with underbody glide system
Trolley system	Telescopic handle with integrated safety lock
Carrying handles	On both sides and at the front (all handles are recessed)

Compatibility & features

Device compatibility	Apple iPads
Protective cases	For up to 16 tablets of max. 14″ incl. thick protective case
External connections	IEC power inlet + optional RJ45 port for access point
Labelling	Device labelling via transparent window on the closure
Cable management	Easy2connect cable management system with original cables

Scope of delivery & certifications

Scope of delivery	1 × power cable 2 m (country-specific), 1 × user manual, 1 × sync cable (USB), 16 × cable tie-down eyelets
Applied standards	DIN EN 55022 / DIN EN 61140 / DIN EN 55024 / DIN EN 50581 / DIN EN 62368-1
Certificates	CE / RoHS / REACH
Warranty	1-year manufacturer's warranty (extension optional)
